Mica in Fire-Resistant Cables — The Ultimate Lifeline in Critical Electrical Systems

When electrical fires threaten lives and property, the difference between safety and catastrophe often depends on the cable itself. Conventional wiring fails catastrophically under extreme heat, while mica fire-resistant cables continue operating when it matters most — buying critical time for evacuation and emergency response. From nuclear power plants to metro systems, mica transforms ordinary cables into life-saving safety systems.

◆ Fire Performance Overview
Temperature Rating750 – 1000°C
Circuit Integrity30 min – 3hr
Fire StandardIEC 60331
Flame PropagationIEC 60332
Nuclear GradeIEEE 383
Life-Safety StatusMission-Critical
1000°C IEC 60331
Mica fire-resistant cable close-up - multi-layer mica tape wrapping around copper conductor for circuit integrity under fire
Life-Safety Foundation

Why Fire-Resistant Cables Matter in Life-Safety Applications

When electrical fires threaten lives and property, the difference between safety and catastrophe often depends on the cable itself. Conventional wiring can fail catastrophically under extreme heat, while mica fire-resistant cables continue operating when it matters most — buying critical time for evacuation and emergency response.

This extraordinary mineral has transformed cable safety across industries, from nuclear power plants to metro systems. Understanding how mica converts standard cables into life-saving safety systems explains why engineers specify it in mission-critical applications — where failure is not an option.

The Science

The Science Behind Mica's Fire Resistance

Mica's exceptional fire resistance comes from its unique crystalline structure and natural composition. Unlike synthetic materials that melt or burn at relatively low temperatures, mica maintains its structural integrity at temperatures exceeding 1000°C, making it one of nature's most effective thermal barriers.

  • ◆ Layered crystal structure creates multiple barriers to heat transfer
  • ◆ Does not melt, drip, or propagate flames like polymer insulation
  • ◆ Forms a protective shield that safeguards conductors and maintains electrical continuity

During fire exposure, this stability becomes critical. Mica-insulated fireproof cables can continue functioning for hours under direct flame, ensuring uninterrupted power supply to:

  • ✔ Emergency lighting systems
  • ✔ Fire pumps
  • ✔ Alarm and communication networks

Its low thermal conductivity slows heat penetration, while its high melting point ensures durability under extreme conditions — making mica indispensable in safety-critical cable design.

Cable Construction

How Mica Enhances Fire-Resistant Cable Construction

Modern fire-resistant cables integrate mica using three advanced engineering techniques — each delivering layered, redundant protection that keeps circuits alive under extreme heat.

1. Mica Tape Wrapping (Most Common)

Thin mica tapes, reinforced with fiberglass or backing materials, are wrapped around conductors or entire cable assemblies. Multi-layer protection system with overlapping design eliminates thermal gaps. Inner layers protect conductors; outer layers reinforce fire barriers. The most widely adopted method in IEC 60331-compliant cables.

2. Mica-Filled Compounds

Finely ground mica is blended into cable sheath materials — distributing fire resistance throughout the cable body. This approach integrates mica directly into the outer jacket, providing continuous thermal and flame protection without relying on tape integrity alone. Ideal for flexible installations.

3. Hybrid Protection Systems

Leading manufacturers combine both methods: primary mica tape insulation + secondary mica-filled compounds. This redundant protection design ensures cable performance even if one layer is compromised — the gold standard for nuclear plants, high-rise buildings, and mission-critical life-safety infrastructure.

3 hr Survival Circuit Integrity

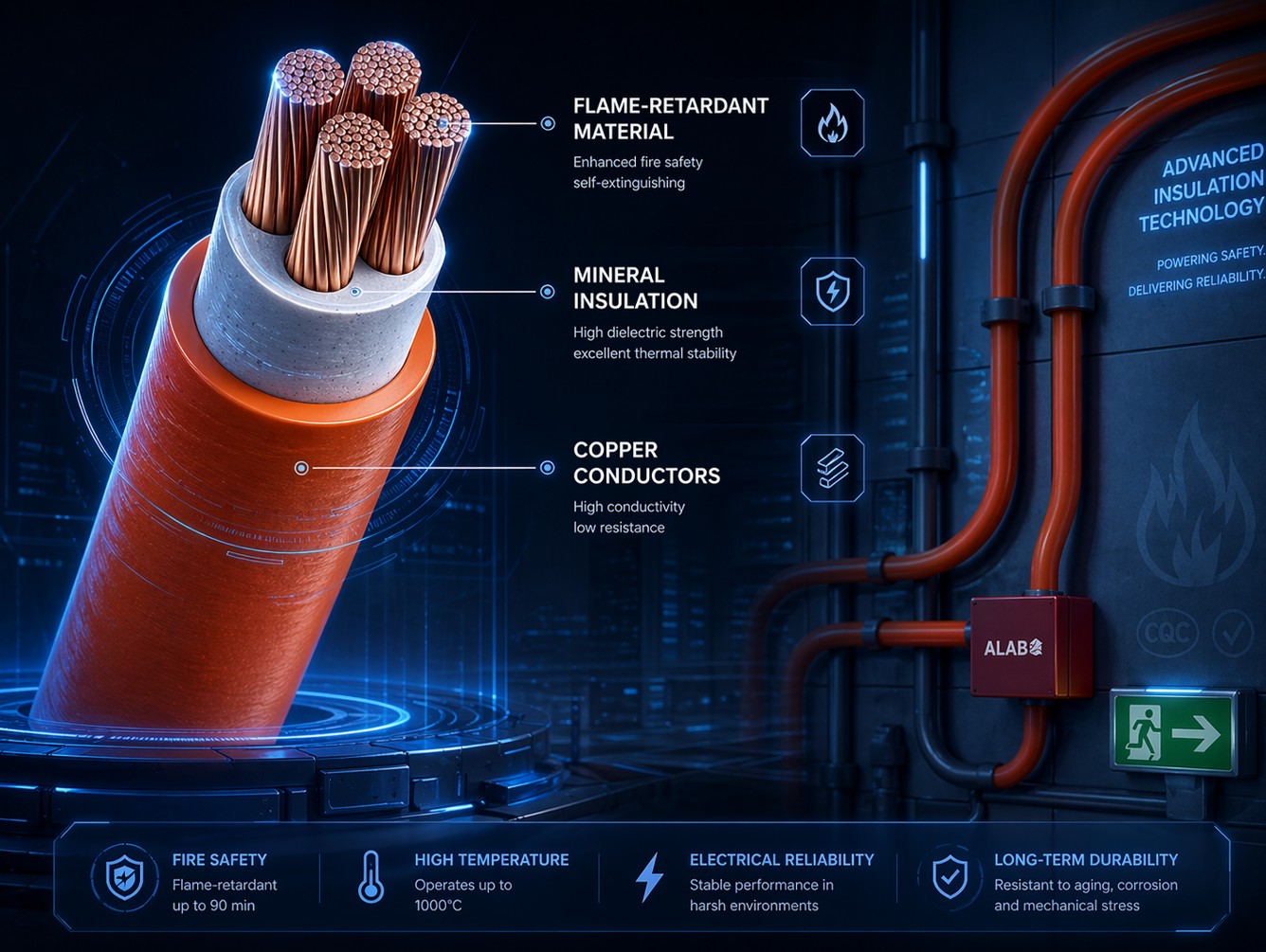

Mica fire-resistant cable installation - metro tunnel, petrochemical facility, high-rise building emergency power and communication circuits
Fire Survival Performance

Temperature Performance & Fire Survival Standards

Fire-resistant cable performance is measured by two critical parameters:

  • Temperature resistance: typically 750°C – 1000°C
  • Circuit integrity duration: 30 minutes to 3 hours

Key advantage of mica: Unlike materials that degrade progressively, mica maintains consistent performance across the entire temperature range — from initial heat exposure to peak fire conditions.

◆ Critical Requirement
Circuit Integrity Under Fire
Fire-resistant cables must maintain electrical continuity during fire exposure — ensuring critical systems (emergency lighting, fire pumps, elevator recall, smoke extraction, alarm networks) remain operational when needed most.
Standards & Certifications

Global Fire-Resistant Cable Standards

Global standards define performance and reliability. Third-party certification ensures cables meet strict safety requirements and perform reliably in real fire scenarios.

IEC 60331

Fire resistance — circuit integrity under direct flame. The benchmark for emergency lighting, fire pumps, and life-safety cables worldwide.

IEC 60332

Flame propagation — prevents cable-to-cable fire spread in cable trays and vertical risers. Essential for dense cable installations.

IEEE 383

Nuclear-grade cable fire performance. Most demanding standard — required for nuclear power plant safety-related circuits and instrumentation.

Industrial Applications

Four Industries Where Mica Fire-Resistant Cables Save Lives

From nuclear reactor containment to metro tunnel emergency systems — mica cables are the trusted lifeline infrastructure in environments where failure is catastrophic.

Nuclear Power Plants

Require cables that function for hours under extreme conditions and resist radiation exposure. IEEE 383-compliant mica cables ensure reactor safety systems, control instrumentation, and emergency shutdown circuits remain operational during design-basis accidents — protecting public safety.

Public Transportation Systems

Metro tunnels, railways, and airports rely on mica cables for emergency lighting, communication systems, and fire protection equipment. Tunnel fires are particularly dangerous — mica cables maintain power and communications long enough for passenger evacuation and emergency response.

Petrochemical Facilities

Operate in explosive environments where fire resistance + hazardous area compliance are critical. Mica cables maintain safety instrumented systems (SIS), emergency shutdown valves, and fire & gas detection during refinery, LNG, and chemical plant incidents — preventing escalation to catastrophic failures.

High-Rise Buildings

Used in life-safety systems: fire alarm circuits, emergency communication, elevator recall systems, smoke extraction fans, sprinkler controllers. Building codes increasingly mandate fire-resistant cables in these applications — especially in super-tall buildings where evacuation times exceed 1 hour.

Cable Types

Four Types of Mica-Based Fire-Resistant Cables

Each cable type is engineered for specific functions in life-safety infrastructure — from raw power delivery to sensitive data transmission under fire conditions.

Power Cables

Maintain energy supply to emergency systems — lighting, pumps, elevators, ventilation fans during fire events.

Instrumentation Cables

Protect sensitive control signals — protecting analog/digital 4-20 mA process signals in refineries and plants.

Thermocouple Cables

Ensure accurate temperature measurement in extreme heat — furnace, boiler, and reactor temperature sensing.

Communication Cables

Maintain data transmission during fire events — voice PA systems, firefighter radios, and network backbone.

Installation

Installation & Handling Considerations

Proper installation is essential to maintain fire performance. Poor installation can compromise fire resistance — even with high-quality materials.

  • ◆ Avoid damaging mica layers during handling (crushing, kinking, or over-pulling)
  • ◆ Respect minimum bending radius (mica cables are more rigid than standard cables)
  • ◆ Use fire-resistant joints and terminations to preserve the fire-rated system
  • ◆ Ensure proper cable support systems (fire-rated trays/conduits) to prevent mechanical stress
Lifecycle

Maintenance & Lifecycle Management

Although mica fire-resistant cables require minimal maintenance, regular inspection is essential to guarantee performance over decades:

  • ◆ Conduct periodic visual inspections
  • ◆ Check for sheath damage or environmental degradation
  • ◆ Protect against UV exposure, chemicals, and mechanical stress

Lifecycle planning is critical, especially for life-safety systems, where reliability must be guaranteed over decades. Building owners and facility managers should implement documented inspection and testing schedules aligned with local fire code requirements.

Future Trends

Future Trends in Mica Cable Technology

Innovation continues to improve mica-based cable systems:

  • Enhanced binders for improved flexibility (easier installation in tight spaces)
  • Hybrid material systems for better mechanical strength and vibration resistance
  • Smart cables with fiber optic monitoring for real-time condition diagnostics
  • Sustainable materials and eco-friendly manufacturing processes

These advancements ensure mica remains at the forefront of fire-resistant cable technology — serving next-generation smart buildings, data centers, and infrastructure projects worldwide.

Product Solutions for Cable Industry

Recommended Mica Products for Fire-Resistant Cables

Browse our most frequently specified mica insulation products for cable manufacturers and wire industry customers worldwide.

Conclusion

Why Mica is the Gold Standard for Fire-Resistant Cables

Mica transforms ordinary cables into lifeline systems capable of withstanding extreme fire conditions. Its unmatched thermal stability, structural integrity, and reliability make it the preferred material for engineers designing critical infrastructure and life-safety systems.

In environments where every second counts, mica doesn't just protect cables — it saves lives.
