High-Voltage Safety & Thermal Protection Solutions β from 800V+ battery packs to ultra-fast charging infrastructure. Mica has become a critical material in EV system design, providing exceptional dielectric strength, superior thermal resistance (>1000Β°C), inherent fireproof performance, and long-term aging stability unmatched by conventional polymer insulation.
Mica insulation is a high-performance dielectric material widely used in electric vehicles (EVs) for thermal management, electrical insulation, and fire protection. With the transition to 800V+ high-voltage platforms and ultra-fast charging, mica has become a critical material in EV system design.
Unlike conventional polymer insulation, mica provides:
Electric vehicles operate under extreme conditions, including:
Traditional insulation materials often fail due to:
Mica-based insulation systems ensure:
From battery thermal barriers to ultra-fast charging cables β mica delivers safety, reliability, and long-term performance across every high-voltage, high-temperature EV subsystem.

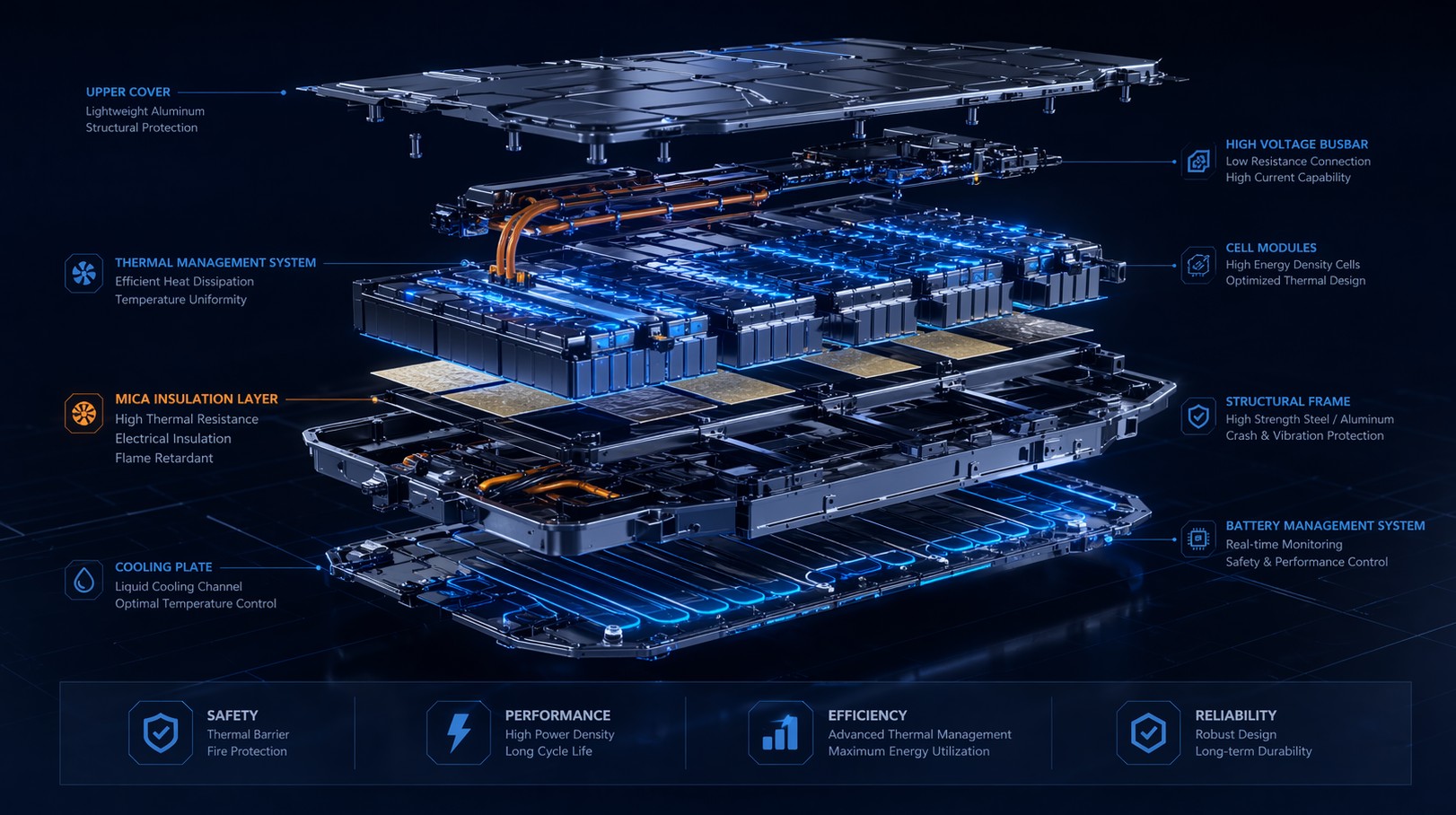

Primary role: battery safety and thermal management. Acts as a thermal barrier between lithium-ion cells, preventing thermal runaway propagation. Provides flame resistance and containment. Flexible mica sheets adapt to complex battery geometries β increasing energy density while enhancing structural safety. Additional benefits: moisture resistance, long-term dielectric stability, non-combustible material.
EV motors require insulation capable of withstanding high voltage stress, high-speed rotation, and continuous thermal cycling. Mica tape insulation provides high dielectric strength under inverter-driven systems, resistance to partial discharge, and stability in Class H / Class C systems. Unlike synthetic insulation: no melting or softening, no carbonization failure, superior lifespan.
Modern EV power systems depend on reliable insulation for inverters, converters, and high-voltage busbars. Mica components β mica sheets, mica gaskets, and mica laminates β deliver high dielectric isolation, thermal resistance under load, and EMI shielding capability. Ensures stable operation of sensitive control systems in compact power electronics packaging.
Fast charging (>350 kW) creates high thermal stress, high current density, and electrical arcing risks. Mica insulation delivers thermal stability under extreme loads, flame resistance for safety compliance, and long service life in outdoor environments. Applications: charging cables, connectors, charging ports β critical for commercial charging infrastructure reliability.
EV high-voltage cables require fire-resistant insulation that maintains electrical integrity even under catastrophic thermal events. Mica tape wrapping around conductor cores provides circuit integrity under fire (up to 1000Β°C exposure), dielectric stability, and mechanical protection β compliant with IEC 60331 circuit integrity standards for EV high-voltage systems.
Emerging EV technologies β solid-state batteries, wireless charging systems, and autonomous vehicle electronics β demand advanced insulation solutions. Mica continues to evolve with improved processing technologies, integration with smart monitoring systems, and enhanced performance for next-generation EV platforms. Ready for the future of e-mobility.
Six fundamental properties make mica the material of choice for the most demanding EV insulation applications worldwide.
>1000Β°C stability β survives battery thermal runaway, motor overheat, and ultra-fast charging thermal loads.
15-200 kV/mm across grades β reliable high-voltage isolation for 800V+ EV platforms and inverter switching.
Inherent fire resistance β no burning, no toxic smoke, no fuel contribution during battery thermal events.
Inert to battery electrolytes, coolants, oils, weak acids/alkalis. Low moisture absorption maintains dielectric.
15-20+ years aging stability β matches or exceeds EV vehicle lifetime with no significant property degradation.
Proven at 800V, 900V, and 1000V+ platforms β future-proofed for next-generation EV voltage architectures.
Mica insulation is widely deployed across six key EV subsystems:
Mica is a naturally occurring mineral with significant sustainability advantages over synthetic alternatives:
Mica's durability directly reduces:
Emerging EV technologies require advanced insulation solutions:
Mica continues to evolve with:
Browse our most frequently specified mica insulation products for EV OEMs and Tier-1 suppliers worldwide.
Polyimide + mica composite tape for EV motor Class H/C windings. High-voltage dielectric, thermal class 180Β°C, resistance to inverter partial discharge.
View Specifications
Thin flexible mica plates for EV battery cell separation and thermal runaway barriers. Adapts to complex geometries, UL94 V-0, fire containment.
View Specifications
Ultra-pure synthetic mica paper for EV busbars, power electronics, and HV cables. 1000Β°C stability, highest breakdown voltage, no iron oxide impurities.
View SpecificationsMica insulation is a core enabling material for electric vehicle safety and performance. Its unmatched combination of:
This combination makes mica essential for modern EV systems. As EV technology advances toward 1000V+ platforms, solid-state batteries, and autonomous driving, mica-based solutions will remain a key component in high-voltage protection and thermal management systems across the e-mobility industry.
