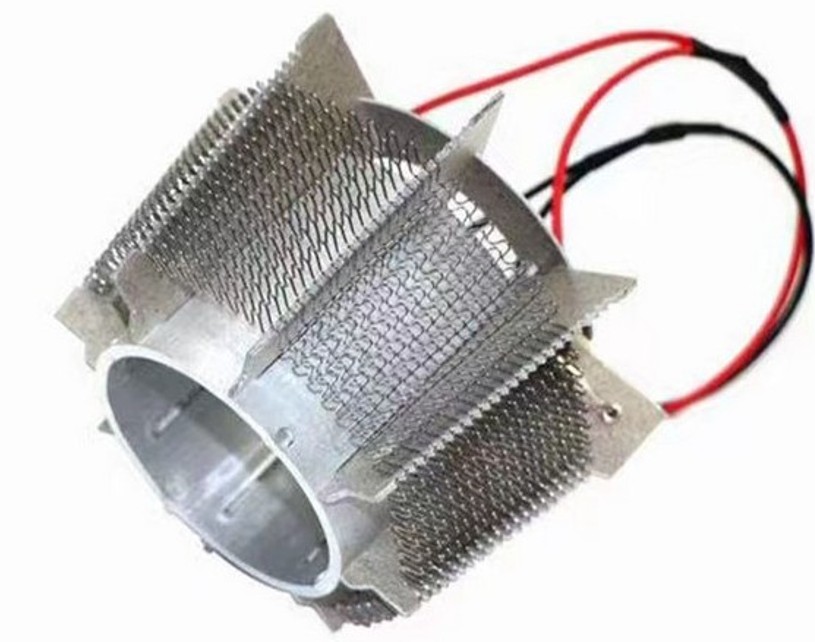

Hair dryer heating element - mica heating head with resistance wire sandwich structure

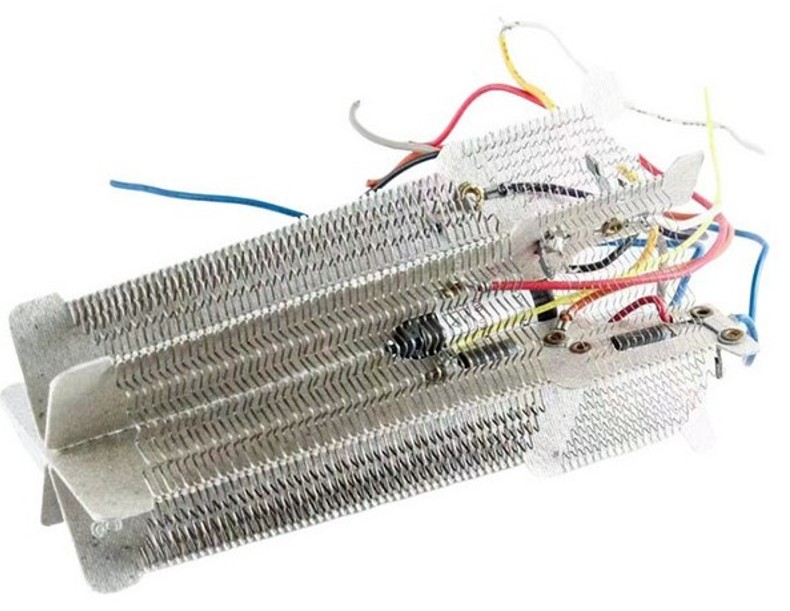

Mica hair dryer heater close-up showing NiCr resistance wire winding on mica board

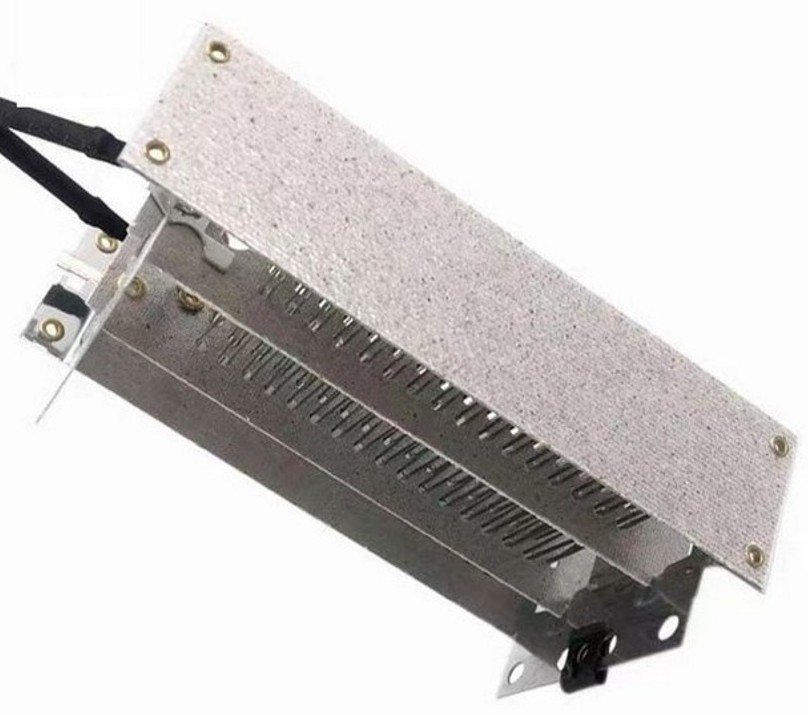

Cylindrical mica heating head for hair dryer with stainless steel support

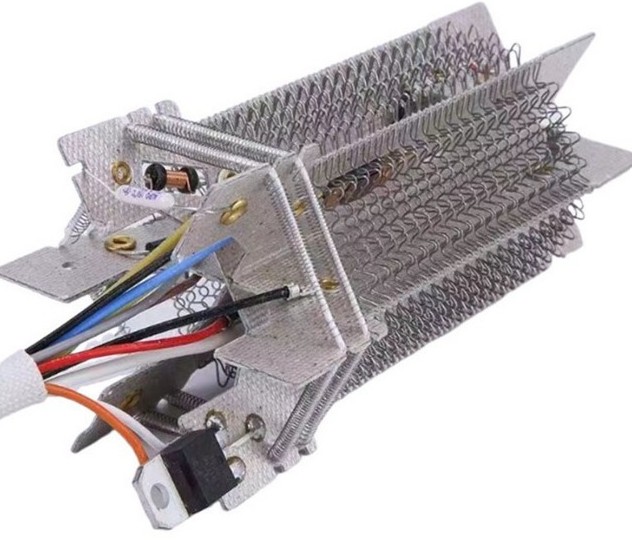

Plate-shape mica heating element variant for compact hair dryers

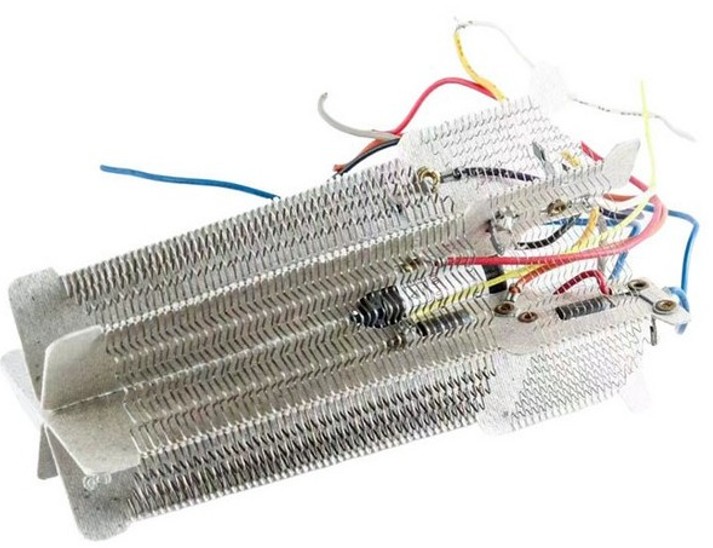

Mica heater installed inside hair dryer housing with airflow channel

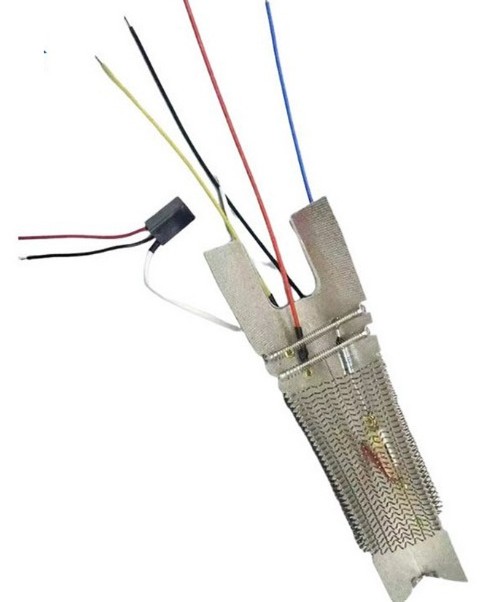

Custom hair dryer heating elements in various power ratings up to 1000W

◆ Mica Heating Components

Hair Dryer Heating Element — Mica Heating Head with Sandwich Structure

Premium mica hair dryer heating element combining excellent insulation and high-temperature resistance with NiCr or FeCrAl alloy resistance wire. Sandwich structure with upper/lower mica covers delivers fast, uniform heating for safe and efficient hair dryer operation. Withstands 600°C, insulation resistance >100 MΩ, heating efficiency ~90%. Customizable shapes and power up to 1000W.

600°C

Max Temperature

>100MΩ

Insulation Resistance

~90%

Heating Efficiency

Request Quote → 💬 WhatsApp Inquiry

Product Overview

What Is a Mica Hair Dryer Heating Element?

A mica hair dryer heating element (also called "mica heating head") is a heating component that leverages mica's excellent insulation and high-temperature properties, combined with alloy resistance wire, to quickly and uniformly generate heat. It ensures hair dryers heat efficiently while maintaining user safety.

Structure: We use white or phlogopite mica board as the insulation carrier material. High-quality alloy resistance wires — FeCrAl (0Cr25Al5) or NiCr (Cr20Ni80) — are wound onto the mica board to form the heating core. The core is then sandwiched between two mica sheets (upper and lower), forming a sandwich-like heating element. Some models include galvanized or stainless steel plates for additional support and protection.

Working Principle: When current flows through the resistance wire wound on the mica board, electrical energy converts to thermal energy. Mica's high thermal conductivity evenly distributes and conducts the heat. Combined with the fan inside the hair dryer, the heat is carried out by airflow, producing the hot air that achieves the hair dryer's heating function.

Key Features

Six Properties That Define Our Hair Dryer Heating Element

Every heating head is assembled to rigorous quality standards, with in-house testing of insulation resistance, power output, and thermal cycling before delivery.

◆ 01

Superior High-Temperature Resistance

Mica board withstands up to 600°C, remaining stable under the high-temperature environment of running hair dryers. Resistant to deformation or damage, ensuring long-term reliable operation.

◆ 02

Excellent Electrical Insulation

Insulation resistance exceeds 100 MΩ, effectively preventing electric shock and safety accidents. Maintains strong insulation even after prolonged use or under high-temperature conditions.

◆ 03

Efficient Heat Generation

Surface heating element with large heat-conductive air contact area, delivering ~90% thermal efficiency. Quickly converts electrical energy to heat — hair dryers produce hot air faster, reducing user wait time.

◆ 04

Strong Corrosion Resistance

The mica heating element is safely enclosed in an insulation layer, resistant to various chemical gases and solutions. This extends the heating head's service life, even in complex environments.

◆ 05

Excellent Mechanical Properties

High bending strength and hardness withstands damage from external forces during production, transportation, and use — while maintaining structural integrity and performance.

◆ 06

Eco-Friendly & Non-Toxic

Contains no toxic or harmful components, releases no toxic gases under high temperature. Meets environmental standards and causes no harm to human body or environment — safe for personal appliance use.

Product Advantages

Two Customization Dimensions — Matched to Your Hair Dryer

Customize shape to fit your hair dryer housing, and power rating to match your product specifications. Both natural muscovite and phlogopite mica grades available.

Customizable Shapes

◆ Plate · Sheet · Cylinder

Designed in multiple shapes to meet different hair dryer models' internal space and performance requirements. Plate style for compact handheld dryers, cylinder style for professional salon models, sheet style for wall-mounted hot air devices.

PLATE
SHEET
CYLINDER
CUSTOM

Wide Power Range

◆ Up to 1000W

Capable of high-power designs up to 1000W — providing suitable heating power for various product needs, and adapting to different hair dryer power standards (110V, 220V, and dual-voltage models). Matched precisely to your rated power and voltage.

300–500W
600–800W
1000W+
CUSTOM W

Technical Specifications

◆ Hair Dryer Heating Element · Rev. 2025

◆ Certified

Parameter	Specification Details
Insulation Carrier	White mica board / phlogopite mica board
Resistance Wire	NiCr alloy: Cr20Ni80 FeCrAl alloy: 0Cr25Al5
Structure	Sandwich: upper mica sheet + resistance wire core + lower mica sheet + optional galvanized/stainless steel support
Max Temperature	600 °C continuous operation
Insulation Resistance	> 100 MΩ
Thermal Efficiency	~90% (surface heating with large air contact area)
Power Range	Up to 1000W (custom per your specification)
Shape Options	Plate / sheet / cylinder / custom CAD
Environmental	Asbestos-free, no toxic gas emission at high temperature

Applications

Where Our Mica Heating Elements Are Used

From household hair dryers and professional salon equipment to industrial hot air devices — mica heating heads deliver fast, safe, and efficient heating for every air-flow appliance.

Household Hair Dryers

Core heating component in consumer hair dryers — delivers 90% thermal efficiency for quick drying at 300-1500W power ratings. Sandwich structure with mica insulation ensures user safety even under prolonged operation.

Professional Salon Dryers

High-power heating heads (800-1000W+) for salon-grade hair dryers requiring continuous heavy-duty operation. Cylindrical mica heater design optimizes airflow and heat distribution for rapid drying without overheating.

Hot Air Guns & Heat Guns

Heating cores for industrial and DIY hot air guns (shrink tubing, paint removal, plastic welding). Mica's 600°C rating handles the higher temperature demands of industrial hot air applications safely and reliably.

Room & Space Heaters

Mica heating heads in PTC ceramic-alternative room heaters and space heaters. Larger surface area and uniform heat distribution deliver quiet, efficient heating in office and residential applications.

Hand Dryers & Dish Dryers

Commercial hand dryers in public restrooms and countertop dish dryers — mica heating elements provide fast start-up, high reliability, and long service life. Meets CE, UL, and RoHS safety standards.

Custom OEM Heating Heads

Co-R&D with appliance manufacturers for custom heating solutions — specify your housing dimensions, power rating, and voltage, we design the optimal mica heater configuration to match. MOQ 100 pcs for custom OEM orders.
