1000°C Series

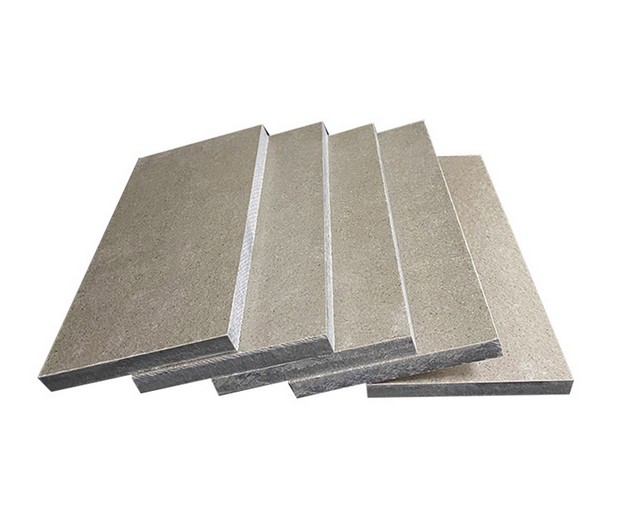

Mica plate series - high-quality industrial insulation boards for motors, furnaces, aerospace and renewable energy applications
◆ Upload as /images/mica-plate.jpg
◆ Complete Product Series

Mica Plate — High-Quality Industrial Insulation Boards

400–1000°C 12–35 kV/mm 4 Grades

High-quality mica plate series for industrial insulation. Our complete product range covers four distinct grades — muscovite, phlogopite, synthetic, and composite — engineered for applications from household appliances to aerospace and renewable energy. Offers wide temperature range (400-1000°C), excellent dielectric strength, and machinable precision (±0.1mm).

400–1000°C
Temperature Range
12–35kV/mm
Dielectric Strength
0.1–20mm
Thickness Range
Request Full Catalog → 💬 WhatsApp Inquiry
Factory Showcase

See Our Mica Plate Production in Action

From raw mica crystals to finished precision-machined plates — our integrated facility delivers batch-consistent quality across all four grades.

Production Mica plate production line - hot press molding of mica paper and resin composite boards
◆ Upload: /images/mica-plate-gallery-1.jpg

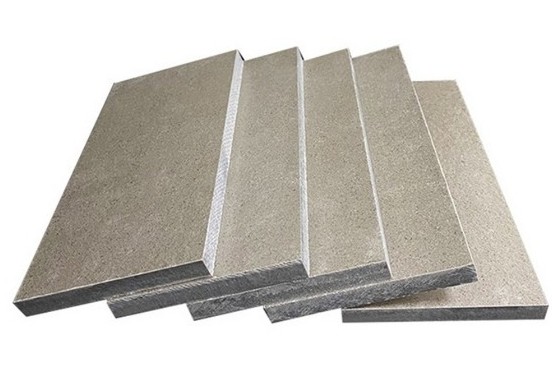

Finished Mica plate finished products - stacked precision-cut insulation plates ready for shipping
◆ Upload: /images/mica-plate-gallery-2.jpg
◆ Factory Production Video · Upload /images/mica-plate-factory.mp4
Key Features

Six Properties That Define Our Mica Plate Series

Every plate across all four grades is manufactured to the same rigorous quality standard — verified per production batch in our in-house QC laboratory.

◆ 01

Outstanding Electrical Insulation

Dielectric strength of 12-35 kV/mm — effectively isolates components in low to high voltage systems (1 kV-110 kV), preventing short circuits and arcing.

◆ 02

Wide Temperature Range

Withstands continuous working temperatures from 400°C to 1000°C (varies by grade) — maintains performance stability in furnaces, engine bays, and industrial ovens.

◆ 03

Robust & Durable

High bending strength (≥80 MPa) withstands mechanical stress without flexing or cracking — making it suitable for motor slot insulation and heavy-duty mechanical spacers.

◆ 04

Flame & Chemical Resistant

UL94 V-0 rated (non-combustible) and resistant to oils, weak acids, and moisture (water absorption ≤1.5%) — ensuring long lifespan in harsh industrial environments.

◆ 05

Precision Machinability

Easily cut, drilled, or stamped into custom shapes with tight tolerances (±0.1mm) — adapts to complex designs in electrical and mechanical equipment.

◆ 06

Low Thermal Conductivity

Reduces heat transfer between components — improving energy efficiency of heating systems and protecting sensitive parts from overheating.

Product Types

Four Grades — Matched to Your Temperature Class

Each grade is engineered for a specific temperature range and application type. Choose the one that matches your operating environment.

400–600°C

Muscovite Mica Plate

Made from natural white muscovite mica — ideal for 400-600°C applications. Offers good electrical insulation at economical cost.

  • Home appliances
  • Microwaves
  • Low-voltage motors
600–800°C

Phlogopite Mica Plate

Natural amber phlogopite mica for 600-800°C environments. Magnesium-rich composition enhances heat resistance for industrial use.

  • Industrial kilns
  • Transformer cores
  • High-temp pipes
Up to 1000°C

Synthetic Mica Plate

Lab-made fluorophlogopite mica withstands up to 1000°C. Ultra-pure (no impurities) with extremely high insulation performance.

  • Aerospace
  • Nuclear reactors
  • Precision electronics
High Strength

Composite Mica Plate

Laminated with glass cloth or ceramic fiber for enhanced strength — for heavy-duty machinery where structural integrity is critical.

  • Power generation
  • Heavy machinery
  • HV systems
Specifications

Dimensions, Density & Surface Options

Standard specifications covering the majority of industrial applications. Custom dimensions, densities, and finishes available on request.

Thickness
0.3–20 mm
Custom down to 0.1 mm for thin insulation layers
Standard Sizes
1200×1000 mm
1000×600 mm
Custom cutting available
Density
1.6–2.3 g/cm³
Varies by resin and mica type
Smooth Finish
Low Friction
Standard finish for most applications
Textured Finish
Better Bonding
For composite laminate systems
Resin System Options

Three Resin Choices Based on Your Temperature Class

Choose the resin system that matches your operating temperature and budget. All options available across the full mica plate range.

◆ Option A · High Temperature

Silicone Resin

Up to 1000°C

Maximum temperature resistance for extreme environments. The premium choice for industrial furnaces, metallurgy, and aerospace applications.

◆ Option B · Cost-Effective

Epoxy Resin

Up to 600°C

Best value for moderate temperature applications. Ideal for HV transformers, motor windings, and industrial equipment operating below 600°C.

◆ Option C · Low Voltage

Phenolic Resin

Up to 400°C

Economical option for low-voltage applications. Suitable for household appliances and low-voltage electrical equipment up to 400°C.

Our Mica Plate Range

Explore Our Three Specialized Plate Products

Beyond the base series, we offer three specialized plate products tailored to specific application requirements. Click through for full specifications.

◆ 3–20mm Thick mica plate

Thick Mica Plate

Heavy-duty structural insulation. 3-20mm (up to 150mm custom), bending strength ≥200 MPa. For furnaces, transformers, and heavy machinery.

View Specifications
◆ 0.1–100mm Rigid mica plate

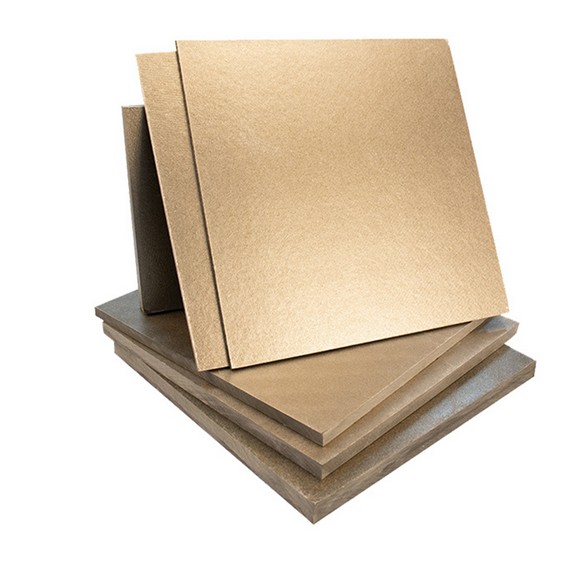

Rigid Mica Plate

Widest thickness range in our catalog. 0.1-100mm with cold-press or precision machining routes. For EV, energy storage, metallurgy, marine.

View Specifications
◆ Bendable Flexible mica plate

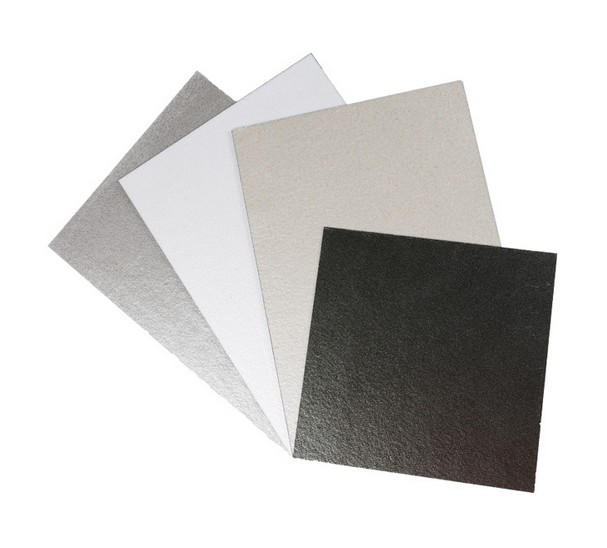

Flexible Mica Plate

Bendable, wrappable, foldable without cracking. 0.1-2mm, 40% lighter. For motor coils, HV cables, automotive wire harnesses, aerospace.

View Specifications
Applications

Five Industries That Specify Our Mica Plates

From traditional power generation to cutting-edge renewable energy — our mica plate series powers insulation across every major industrial sector.

Electrical Engineering

Motor slot insulation, transformer insulation layers, and spacers in switchgear — ensuring safe operation of high-voltage components.

Industrial Kilns & Furnaces

Kiln linings, furnace doors, and heating chambers — protecting metal structures from extreme temperatures and reducing energy loss.

Automotive & Aerospace

Engine compartment heat shields, exhaust system insulation, and battery pack separators — withstands vibration and high temperatures.

Home Appliance Manufacturing

Baseplates in toasters, hair dryers, and industrial heaters — isolating heating elements from outer casings to prevent burns.

Renewable Energy

Insulation in solar inverters, wind turbine generators, and geothermal equipment — protecting electrical components from thermal cycling.

Custom Industrial Applications

CNC-machined to your exact specifications for specialized industrial uses requiring precise dimensional tolerance and material performance.

Specifying Mica Plates for Your Project?

Tell us your operating temperature, thickness, sheet size, and quantity — our engineering team responds within 24 hours with TDS, samples, and factory-direct pricing across all four grades.
