Mica for Railway & Rail Transit — Premium Insulation for Metros, High-Speed & Light Rail

Rail transit vehicles face unique operational demands that distinguish them from other transportation modes. Systems must handle high-frequency electrical operations while managing extreme temperatures and maintaining passenger safety standards. Mica tape forms the foundation for many critical applications in rail transit — delivering exceptional electrical insulation and outstanding thermal performance. Unlike conventional materials that degrade under stress, mica retains its protective properties even at the highest temperatures and electrical loads encountered in railway service.

◆ Railway Performance Overview

Traction Motor Voltage>3000V

Dielectric Strength>18kV/mm

Phlogopite Continuous Temp200°C

Fire SurvivalEN 45545-2

Switchgear Range1.5 kV DC – 25 kV AC

Brake Heat Peak>600°C

3000V+ Traction Motor

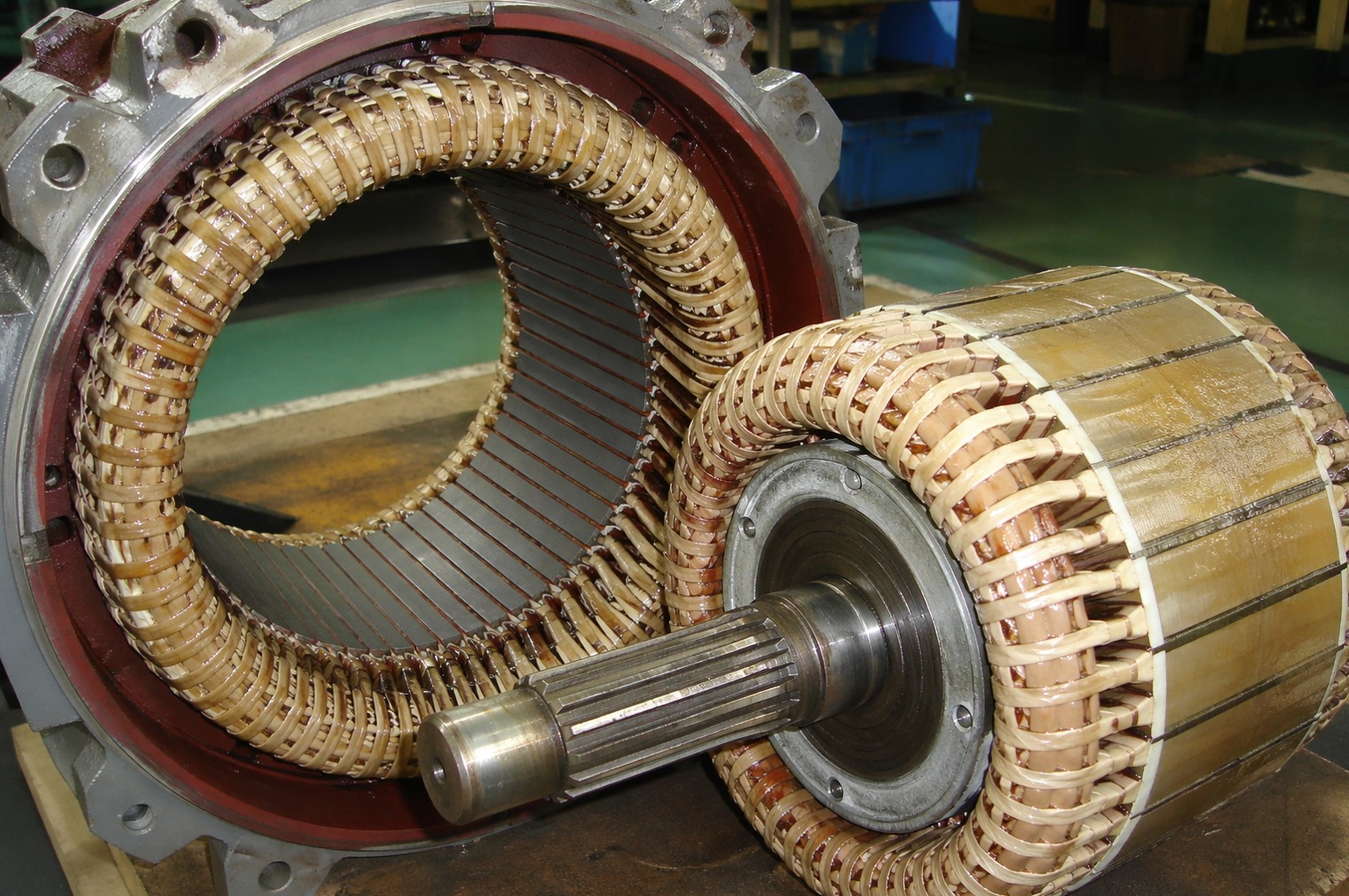

Mica insulation in railway traction motor - muscovite tape winding protection and phlogopite paper thermal barrier for 3000V continuous operation at 200°C

Why Railway is Different

Why Rail Transit Demands Premium Insulation

Rail transit vehicles operate under conditions unlike any other industry. High-frequency electrical operations, extreme temperature cycles, and uncompromising passenger safety standards create a demanding environment where insulation failure is simply not an option.

Mica's mineral composition offers inherent advantages for industrial applications, particularly where reliability cannot be compromised. Its crystalline structure provides excellent corrosion resistance while maintaining the flexibility required for complex installations — making it the ideal choice for applications requiring long-term performance under demanding conditions.

◆ High-frequency electrical operations — inverter-driven traction motors with PWM switching
◆ Extreme temperature management — from sub-zero winter starts to 200°C+ continuous motor operation
◆ Fire safety compliance — EN 45545-2 and DIN 5510 standards mandate 30-minute circuit integrity at 800°C
◆ Vibration & thermal cycling — thousands of start/stop cycles across decades of service life
◆ Compact vehicle packaging — insulation must deliver maximum performance in minimum space

Traction Motor Insulation

Protecting Rail Transit's Driving Power

Traction motors are the most critical components in electric rail systems, converting electrical energy into mechanical motion that propels trains at ever-higher speeds. These motors operate under continuous high-voltage stress while generating substantial heat during normal operation.

◆ Advanced Winding Protection Solutions

The stator and rotor windings of rail transit motors require robust protection against both electrical and thermal stresses. Muscovite mica tape provides critical insulating layers that prevent electrical breakdown while maintaining structural integrity under extreme operating conditions.

Modern traction motors operate at voltages exceeding 3000V while handling high-frequency switching that destroys conventional insulation materials. Properly applied mica tape delivers dielectric strength exceeding 18 kV/mm, providing ample safety margin even under fault conditions.

Temperature management is particularly critical during acceleration cycles when motors endure peak thermal stress. Phlogopite mica paper provides outstanding high-temperature resistance, maintaining its insulating properties at continuous temperatures up to 200°C.

◆ Connection & Lead Protection

Motor leads and internal connections face unique challenges in rail transit applications. Continuous vibration and thermal cycling during operation can cause conventional insulation materials to crack or separate — creating potential safety hazards.

Mica tubes provide flexible protection for motor leads while maintaining the excellent tensile strength required to withstand mechanical stresses. These specialized products combine mica's heat resistance with the flexibility needed for dynamic applications.

RF interference generated by modern power electronics demands materials that provide effective shielding without compromising primary insulation function. Mica-based solutions deliver natural RF attenuation while maintaining their core protective properties.

Fire-Resistant Cable Systems

Critical Safety Infrastructure for Rail Transit

Railway safety standards mandate that cable systems continue functioning during emergencies. Power cables and control cables must remain operational when exposed to extreme temperatures during fires — providing critical services like emergency lighting and communication systems.

◆ EN 45545-2 Fire Survival Requirement

30-Minute Circuit Integrity at 800°C+

Fire-resistance requirements for rail transit applications exceed those of most other industries. Standards like EN 45545-2 mandate that critical cables maintain circuit integrity for at least 30 minutes when exposed to flames over 800°C — ensuring emergency systems remain operational during evacuation.

Calcined mica tape forms the backbone of fire-resistant cable construction, creating a ceramic-like barrier under high temperatures. This barrier prevents flames from penetrating conductors while maintaining electrical continuity during the critical initial phase of fire emergencies.

Rail cables face environmental challenges beyond fire resistance. Power lines and control systems must withstand moisture, chemical exposure, and physical damage across diverse environmental conditions while maintaining reliable operation.

◆ Control Cable Integrity Systems

Modern rail transit vehicles integrate sophisticated control systems managing everything from propulsion to passenger comfort. These control cables require specialized protection to ensure signal integrity while providing robust environmental protection.

Synthetic mica paper offers consistent thickness and electrical performance — ideal for precision control applications. The manufacturing process eliminates natural mineral variation found in natural mica, delivering the predictable performance characteristics required for critical control circuits.

800°C / 30 min EN 45545-2

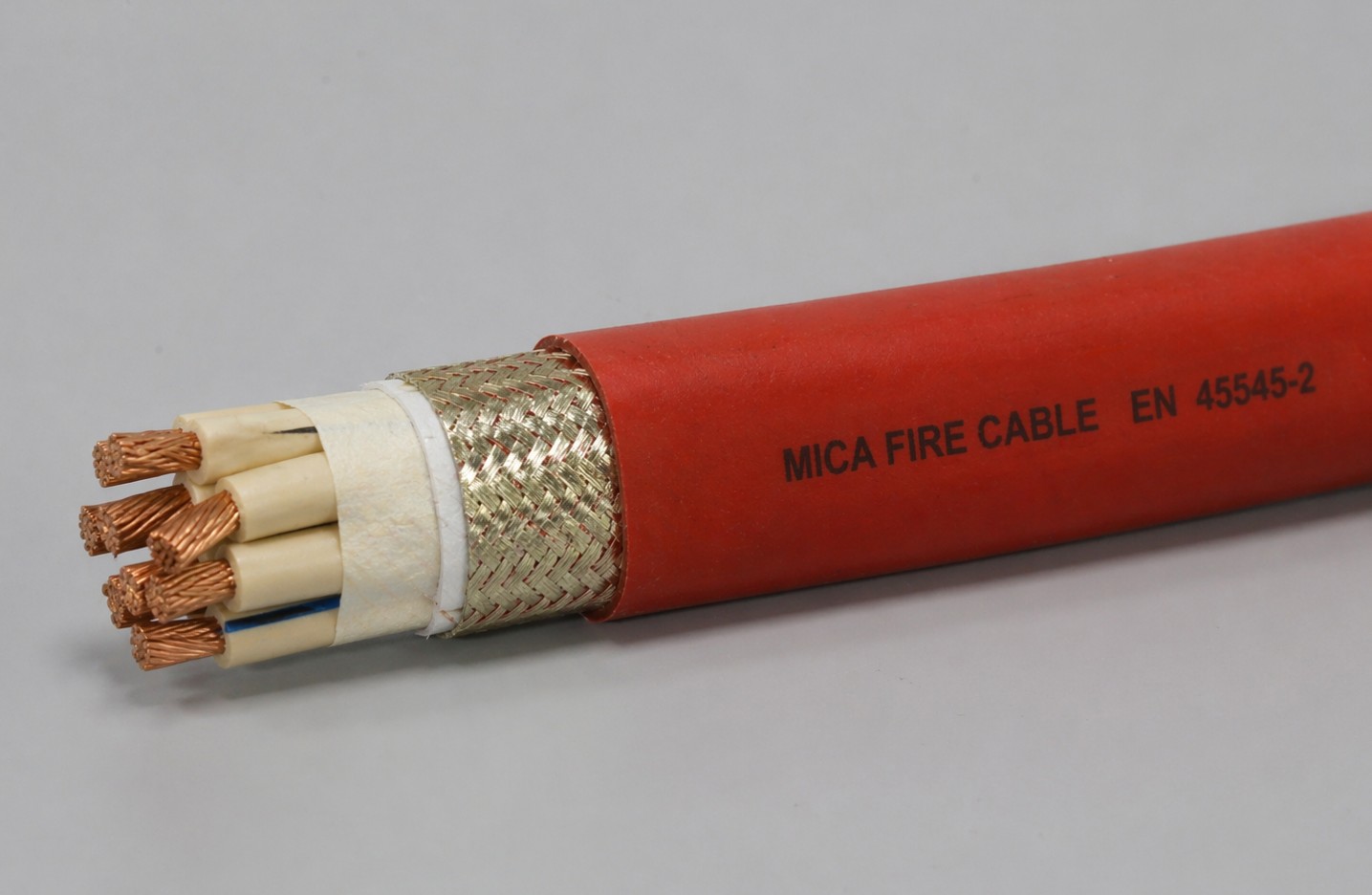

Fire-resistant mica cable in rail transit vehicle - EN 45545-2 compliant calcined mica tape wrapping for 30-minute circuit integrity at 800°C

Six Key Applications

Where Mica Protects Rail Transit Systems

From traction motor windings to brake system thermal barriers — mica delivers critical protection across every high-performance subsystem in modern rail transit vehicles.

Traction Motor Windings

Muscovite mica tape provides critical insulation in stator and rotor windings — preventing electrical breakdown at >3000V while maintaining structural integrity under high-frequency inverter switching. >18 kV/mm dielectric strength delivers ample fault-condition safety margin.

Motor Thermal Management

Phlogopite mica paper delivers outstanding high-temperature resistance, maintaining insulating properties during continuous 200°C operation. Critical during acceleration cycles when motors endure peak thermal stress during high-frequency start/stop service.

Motor Leads & Connections

Mica tubes provide flexible protection for motor leads — withstanding continuous vibration and thermal cycling that causes conventional materials to crack. Excellent tensile strength + heat resistance + flexibility for dynamic rail applications.

EN 45545-2 Fire-Resistant Cables

Calcined mica tape forms the backbone of fire-resistant cable construction — creating ceramic-like barriers at high temperatures. Maintains 30-min circuit integrity at 800°C+ for emergency lighting and communication systems.

HV Switchgear (1.5 kV DC – 25 kV AC)

Mica boards serve as busbar supports and terminal insulators in rail switchgear. Withstand mechanical forces from switching operations while delivering stable electrical insulation across thermal cycling — from 1500V DC metro systems to 25kV AC mainline rail.

Brake System Thermal Barriers

Rigid mica boards provide structural thermal barriers between brake components and vehicle parts. During emergency braking, instantaneous temperatures can exceed 600°C — mica maintains protective performance even under thermal shock conditions.

HV Equipment & Thermal Management

High-Voltage Switchgear & Brake System Protection

Rail electrical systems include high-voltage equipment like transformers, switchgear, and power conversion systems — all requiring specialized insulation solutions. These components operate continuously under electrical stress while managing substantial thermal loads.

◆ Switchgear Insulation Solutions

High-voltage switchgear in rail applications must handle systems ranging from 1500V DC to 25 kV AC. Insulation must provide reliable protection while maintaining the compact dimensions required for vehicle installation.

Mica boards serve as busbar supports and terminal insulators in switchgear applications. These components must withstand mechanical forces generated during switching operations while providing stable electrical insulation across diverse environmental conditions.

Thermal cycling during switchgear operation creates expansion and contraction that can stress insulation systems. Mica's natural stability at extreme temperatures ensures long-term reliability without electrical performance degradation.

◆ Brake System Thermal Protection

Modern rail vehicles' regenerative and friction braking systems generate substantial heat during operation. During emergency braking, instantaneous temperatures of brake components can exceed 600°C — requiring effective thermal barriers to protect surrounding equipment.

Rigid mica boards provide structural thermal barriers between brake assemblies and vehicle components. These materials maintain their protective performance even under thermal shock conditions experienced during emergency stops.

Energy Storage & Modern Applications

Advanced Applications for Modern Rail Transit

Contemporary rail systems integrate increasingly sophisticated technologies that bring new challenges for insulation materials. From high-speed operations to energy recovery systems, modern applications demand materials that can adapt to evolving requirements.

◆ Energy Storage & Power Management

Battery energy storage systems and supercapacitors used in modern rail applications present unique insulation challenges. These systems operate at high voltages while managing rapid charge-discharge cycles that generate substantial heat.

Flexible mica sheets provide moldable insulation that adapts to complex geometries while maintaining excellent electrical properties. These materials deliver the flexibility required for battery pack applications while providing robust thermal protection.

Mica's high-performance characteristics make it ideal for applications with limited space but strict safety requirements. Energy storage compartments benefit from mica's ability to simultaneously deliver electrical insulation and thermal protection in compact configurations.

Rail Vehicle Applications

Four Types of Rail Transit Vehicles Served

Every major rail vehicle category benefits from mica insulation — from urban metros to transcontinental high-speed rail.

Metro & Subway Systems

Underground and elevated urban transit — 750V/1500V DC systems with frequent stops. Mica ensures tunnel fire safety + traction motor reliability across millions of start-stop cycles.

High-Speed Rail (>250 km/h)

CRH, TGV, Shinkansen, ICE class vehicles — 25kV AC catenary, high-speed aerodynamic loads. Mica handles ultra-fast thermal cycling + long-distance continuous operation.

Light Rail & Tram Systems

Urban trams and LRT vehicles — 600V-750V DC overhead catenary. Mica supports compact motor designs, lightweight vehicle construction, and frequent urban braking.

Freight & Intercity Rail

Electric locomotives for freight and long-distance passenger service — high-torque traction motors, heavy-haul operations. Mica delivers durability for 30+ year vehicle service life.

Environmental & Future Developments

Sustainability and Next-Generation Rail

Modern rail transit systems must meet increasingly strict environmental regulations while maintaining operational performance. Insulation materials play crucial roles in both environmental compliance and system efficiency.

Production of mica-based insulation involves processes that minimize environmental impact while maintaining product quality. Mica processing technology has evolved to reduce waste and energy consumption while improving material performance.

As rail systems achieve higher operating speeds, demands on insulation materials increase correspondingly. Specialized mica products developed for high-speed applications focus on maintaining traditional advantages while meeting new performance requirements — enabling the next generation of 400 km/h+ high-speed rail and 4th-generation metro systems.

Product Solutions for Railway

Recommended Mica Products for Rail Transit

Browse our most frequently specified mica insulation products for railway OEMs and rail transit manufacturers worldwide.

◆ Traction Motor

Muscovite Mica Tape

Premium muscovite mica tape for railway traction motor stator/rotor windings. >18 kV/mm dielectric strength for >3000V operation, inverter-driven PWM switching resistant, Class H/C thermal class compliant.

View Specifications

◆ EN 45545-2 Cable

Calcined Mica Tape

Fire-resistant calcined mica tape for rail cable construction. EN 45545-2 compliant, maintains 30-min circuit integrity at 800°C+. Forms ceramic barrier under fire for emergency lighting and communication cable integrity.

View Specifications

◆ Switchgear / Brake

Rigid Mica Board

High-strength rigid mica boards for HV switchgear busbar supports (1.5 kV DC – 25 kV AC) and brake system thermal barriers (600°C+ shock). Structural integrity + stable electrical insulation across thermal cycling.

View Specifications

Conclusion

Mica: The Foundation of Rail Transit Safety & Reliability

From traction motor windings operating at 3000V+ to fire-resistant cables maintaining 30-minute circuit integrity at 800°C, mica insulation forms the invisible backbone that enables modern rail transit. Its unmatched combination of electrical insulation (>18 kV/mm), thermal stability (200°C continuous, 600°C+ peak brake heat), flame retardancy (EN 45545-2), and mechanical durability makes it the preferred insulation for railway OEMs worldwide.

As rail systems reach ever-higher speeds and stricter safety standards, mica continues to prove why it's the premium choice for rail transit insulation.
