Heating Components Category

Mica Heating Components — 6 Premium Products for Industrial, Appliance & Cookware

Complete range of mica-based heating components for industrial equipment, household appliances, cookware, and precision electronics. Six engineered product lines: mica heating elements, heater plates (concave induction pans), plate resistors, electric heating films, hair dryer heating elements, and flange gaskets. Operating temperatures from 200°C to 1000°C, power ratings 5W to 5000W. Muscovite, phlogopite, and synthetic mica grades. Customizable dimensions, power, voltage, and packaging for every OEM need.

◆ Category Overview

Product Lines6

Temperature Range200–1000°C

Power Range5W–5000W

Dielectric Strength15–30kV/mm

VoltageAC 5V – 380V

Export Countries30+

Our Product Range

Six Engineered Product Lines — Matched to Your Application

Each product line is purpose-built for specific heating requirements, industry standards, and end-use applications. Click through for full specifications.

700°C Industrial

50W–5000W

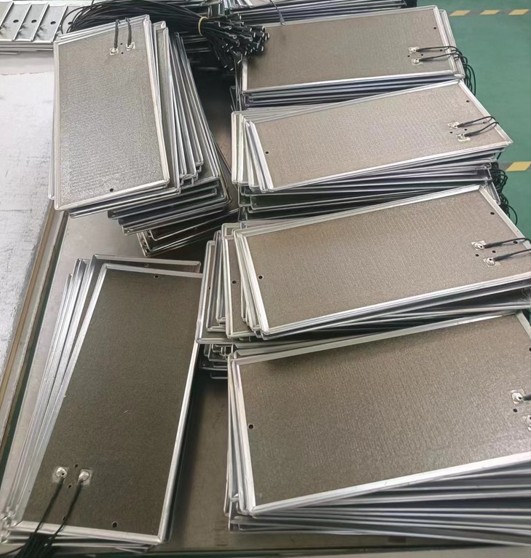

◆ Industrial & Appliance Heater

Mica Heating Element

Workhorse heater for industrial ovens, furnaces, medical incubators, automotive seat heaters, and aerospace cabin heating. Uniform heat distribution, thin flat or curved shapes, NiCr/Constantan resistance wire.

Temp300–700 °C

Power50W–5000W

Voltage110V/220V/380V

ShapesFlat/Strip/Curved

Full Specifications

3s Heat IP44

±2°C Uniform

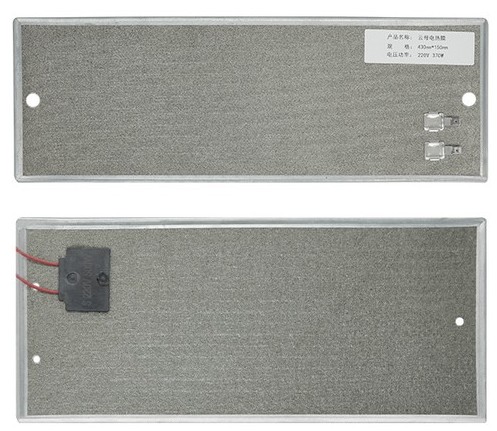

◆ Thin Flexible Film Heater

Electric Heating Film

Metal foil heating element laminated with mica paper. 3-second rapid heating, ±2°C temperature uniformity, >100,000 hour service life. For rice cookers, 3D printer beds, car seats, medical devices.

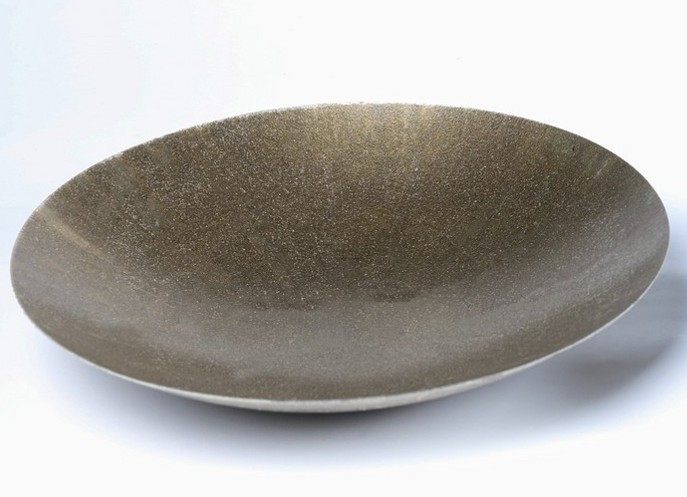

Mica Heater Plate

Innovative concave induction cooker pan with natural mica. Curved bottom conforms to induction cooktop for maximum heat transfer. Smart safety protection, non-toxic, wear-resistant. For family kitchens and light food service.

DesignConcave

MaterialNatural Mica

SafetySmart Control

UseKitchen / Restaurant

Full Specifications

600°C 90% Eff

Up to 1000W

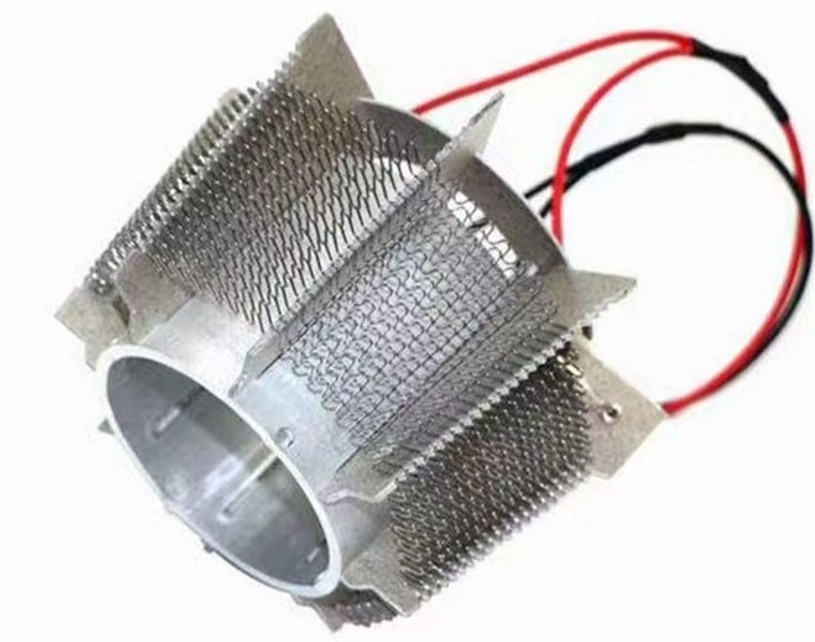

◆ Appliance Heating Head

Hair Dryer Heating Element

Mica hair dryer heating head with NiCr/FeCrAl resistance wire sandwich construction. ~90% thermal efficiency, >100MΩ insulation. Customizable plate/sheet/cylinder shapes. For hair dryers, heat guns, fan heaters.

◆ Precision Industrial Resistor

Mica Plate Resistor

High-precision resistor with mica substrate. Film deposition and photolithography processes for tight tolerance control. Standardized PCB pins. For generator excitation, PLC modules, EV BMS, PV inverters.

ResistanceΩ – MΩ (Custom)

PowerLow W – High W

PackageSMD / THT

Best ForPower / EV / PV

Full Specifications

1000°C Seal

≥15 kV/mm

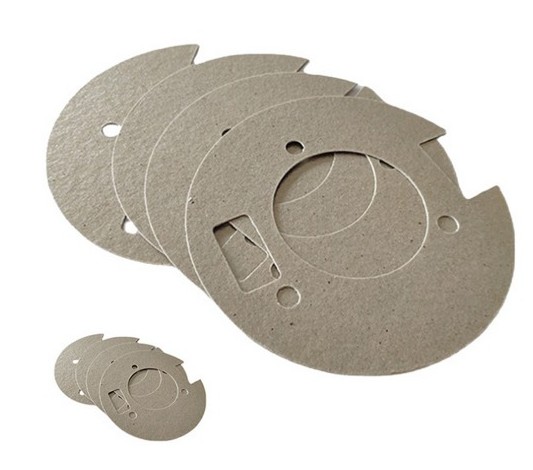

◆ Industrial Sealing Gasket

Mica Flange Gasket

Precision-stamped mica gaskets for high-temperature industrial sealing. Muscovite/phlogopite/synthetic grades. Chemical inertness, compression-flexibility balance. For motors, HV transformers, industrial furnaces, exhaust.

Temp500–1000 °C

Breakdown≥15 kV/mm

Thickness0.15–5 mm

Best ForPower / Furnace / Auto

Full Specifications

Side-by-Side Comparison

Which Heating Component Matches Your Application?

Compare all 6 heating products at a glance — by temperature, power, best-fit use case. Click any column header to visit the full product page with complete TDS.

Property	Heating ElementIndustrial	Heating FilmFlexible	Heater PlateCookware	Dryer ElementAppliance	Plate ResistorElectronics	Flange GasketSealing
Primary Function	Surface heating	Rapid flat heating	Induction cooking	Air heating	Circuit resistance	Thermal sealing
Max Temperature	700 °C	330 °C (surface)	600 °C	600 °C	High-temp stable	1000 °C
Power Range	50W–5000W	5W–3000W	Induction-driven	Up to 1000W	Low W – High W	N/A (gasket)
Voltage	110V / 220V / 380V	AC 5V–380V	Induction cooktop	110V / 220V	Circuit level	N/A
Dielectric Strength	15–30 kV/mm	15–30 kV/mm	15–30 kV/mm	>100 MΩ insulation	Strong insulation	≥15 kV/mm
Key Feature	Uniform heat distribution	3-sec rapid heat, ±2°C	Concave induction-adapted	~90% thermal efficiency	Film deposition precision	Precision stamping
Form Factor	Flat/strip/curved plate	Thin flexible film (0.3-2mm)	Concave pan/bowl	Plate/sheet/cylinder	PCB component	Thin gasket (0.15-5mm)
Service Life	Long-term industrial	>100,000 hours	Extended daily use	High-cycle	Long-term stable	Long-term sealed
Safety Features	Thermal shock resistant	IP44 waterproof	Smart temp protection	Mica insulation	Shock-resistant package	Chemical inertness
Best For	Industrial ovens / medical	Rice cookers / 3D printers / cars	Family kitchens / restaurants	Hair dryers / heat guns	BMS / PV inverters / PLC	Motors / transformers / furnaces
Compliance	Industrial grade	GB4706 / RoHS / REACH	Food-safe natural mica	Appliance grade	Industrial circuits	IEC / UL 94

◆ Decision Helper

Not Sure Which Heating Component You Need?

Match your application to the right product. If your use case isn't listed here, contact our engineering team — we'll recommend the best fit within 24 hours.

◆ For Industrial Heating You need high-temperature (300-1000°C) uniform heating for industrial equipment or OEM machinery?

Industrial ovens & furnaces
Medical incubators & sterilizers
Automotive seat heaters / defrosters
Aerospace cabin heaters
Laminating & thermoforming machines

Recommended

Mica Heating Element

View Product

◆ For Rapid Flat Heating You need flexible, thin, fast-heating film for appliances, 3D printers, or vehicle interiors?

Rice cookers & coffee makers
3D printer beds & injection molds
Car seat / steering wheel heating
Medical heating pads & blood warmers
Aerospace sensor anti-condensation

Recommended

Electric Heating Film

View Product

◆ For Cookware / Appliance You need consumer-facing cookware or appliance-specific heating elements (hair dryers, pans)?

Concave induction cooker pans (kitchen)
Hair dryers & heat guns (NiCr/FeCrAl)
Commercial griddles / waffle makers
Private kitchens & small restaurants
Wall-mounted fan heaters

Recommended

Heater Plate or Hair Dryer Element

View Heater Plate

◆ For Precision Electronics / Sealing You need precision resistance components or high-temperature sealing gaskets for industrial equipment?

EV BMS battery management resistors
PV inverter precision resistors
PLC / industrial automation circuits
Motor / transformer / HV switchgear sealing
Industrial furnace / boiler gaskets

Recommended

Plate Resistor or Flange Gasket

View Plate Resistor

Why SZX Heating Components

What Sets Our Mica Heating Components Apart

15+ years of mica expertise, in-house NiCr/FeCrAl resistance wire assembly, and dedicated R&D for heating applications — from family kitchen cookware to aerospace cabin heating.

Full Temperature Range 200-1000°C

Complete mica grade portfolio — muscovite (up to 400°C), phlogopite (up to 700°C), synthetic (up to 1000°C). From low-temperature heating films (50°C) to extreme industrial heaters (1000°C) — one supplier covers every thermal need.

In-House Resistance Wire Assembly

NiCr (nickel-chrome) and FeCrAl (iron-chrome-aluminum) resistance wire winding and sandwich construction in-house. Precision spot-welded terminals, standardized pin layouts, consistent batch-to-batch resistance values for OEM quality assurance.

Certifications & Compliance

GB4706 (household appliance safety), RoHS, REACH, UL 94 V-0 flame retardant, IEC 60371-2 / 60243-1 dielectric testing. IP44 sealing for specific products. Food-safe natural mica for cookware. Documentation package provided with every shipment.

Co-R&D OEM Design Support

Share your equipment specs — we recommend optimal mica grade, resistance wire type, power density, and dimensions. CAD-based custom design, prototyping support, and volume production scaling. Response within 24 hours.

Who Uses Our Heating Components

Trusted Across Nine Industries for Heating Solutions

From consumer kitchen appliances to aerospace cabin heaters and precision EV battery management — our heating components serve critical applications across every major sector.

Household Appliances

Rice cookers, coffee makers, hair dryers, irons, electric stoves, kettles

Commercial Food Service

Griddles, waffle makers, panini presses, induction cooker pans (concave), warming drawers

Industrial Ovens & Furnaces

Drying, curing, baking of ceramics, plastics, metals (up to 1000°C)

Medical Devices

Incubators, sterilizers, heating pads, blood warmers, therapeutic heating

Automotive Heating

Seat heaters, steering wheel heating, defrosters, engine preheaters, EV BMS

Aerospace & Defense

Cabin heaters, avionics heating, sensor anti-condensation, military equipment

Industrial Molds & 3D Printing

Injection molds, 3D printer beds, thermoforming equipment, laminating machines

Power & Electronics

Generator excitation systems, HV converters, PLC modules, PV inverters

Industrial Sealing

HV transformer / switchgear gaskets, furnace door seals, automotive exhaust

Frequently Asked

Heating Components Buyer's Guide

The most common questions from engineers, OEM buyers, and procurement teams sourcing mica-based heating components.

Match product to application: Mica Heating Element for industrial ovens, medical incubators, and automotive seat heaters (300-700°C, 50W-5000W). Electric Heating Film for rice cookers, 3D printer beds, and car interiors (3-sec rapid heating, flexible, ±2°C uniformity, IP44). Mica Heater Plate for concave induction cookware (food-safe natural mica). Hair Dryer Heating Element for hair dryers, heat guns, and fan heaters (600°C, ~90% efficiency). Mica Plate Resistor for EV BMS, PV inverters, PLC modules. Mica Flange Gasket for motor/transformer/furnace sealing (500-1000°C).

Muscovite (white mica): up to 400°C continuous, excellent dielectric strength — best for consumer appliances, hair dryers, low-power heating films. Phlogopite (gold mica): up to 700°C continuous (900°C intermittent), premium thermal stability — best for industrial ovens, commercial griddles, automotive exhaust, HV transformers. Synthetic mica: up to 1000°C, ultra-pure chemical stability — best for aerospace, critical HV equipment, and specialty industrial sealing. We'll recommend the right grade based on your operating temperature and environment.

Yes, all 6 products are fully customizable. Typical customization: Dimensions — heating element L 50-1000mm × W 20-500mm × T 0.5-5mm, heater plate up to 800×400mm, flange gasket 0.15-5mm thick. Power — 5W to 5000W depending on product. Voltage — 110V, 220V, 380V standard; AC 5V-380V custom (including DC and 3-phase). Resistance — Ω to MΩ for plate resistors. Shapes — flat, strip, curved, concave, rectangular, round, custom CAD geometries. Send your specification and we'll quote within 24 hours.

Our heating components are manufactured per these standards: GB4706.1-2005 / GB4706.23-2007 (household appliance safety for heating film), RoHS (lead-free, restricted substances compliance), REACH (EU chemical regulation), UL 94 V-0 (flame retardant), IEC 60371-2 / 60243-1 (mica and dielectric testing). For cookware products (Mica Heater Plate), natural mica is food-safe with no coating leaching concerns. IP44 sealing available on heating films. Documentation package provided with every shipment.

For samples: 5-20 pcs, lead time 7-14 days (including design confirmation and testing). For standard OEM orders: MOQ 500-1000 pcs per SKU, lead time 20-30 days. For high-volume production (>5000 pcs): lead time 25-40 days with consolidated shipments and negotiable pricing. For custom-designed OEM products (new design): additional 2-3 weeks for R&D and tooling. Rush production available with small surcharge. VMI arrangements available for long-term OEM partnerships.

Yes — we provide full co-R&D design consultation. Share your equipment specs (target temperature, power requirement, voltage, dimensions, safety requirements, expected service life, quantity) — our engineering team recommends optimal mica grade, resistance wire type (NiCr/FeCrAl/Constantan), power density, sandwich construction, and packaging. CAD-based design, prototyping, and volume production scaling all supported. Response within 24 hours. We've developed heating solutions for consumer brands, medical device OEMs, automotive tier-1 suppliers, and aerospace manufacturers.

Mica Heating Components — 6 Premium Products for Industrial, Appliance & Cookware

Six Engineered Product Lines — Matched to Your Application

Mica Heating Element

Electric Heating Film

Mica Heater Plate

Hair Dryer Heating Element

Mica Plate Resistor

Mica Flange Gasket

Which Heating Component Matches Your Application?

Not Sure Which Heating Component You Need?

What Sets Our Mica Heating Components Apart

Full Temperature Range 200-1000°C

In-House Resistance Wire Assembly

Certifications & Compliance

Co-R&D OEM Design Support

Trusted Across Nine Industries for Heating Solutions

Household Appliances

Commercial Food Service

Industrial Ovens & Furnaces

Medical Devices

Automotive Heating

Aerospace & Defense

Industrial Molds & 3D Printing

Power & Electronics

Industrial Sealing

Heating Components Buyer's Guide

Need Mica Heating Components for Your Product?
