Product Gallery

See Our Electric Heating Films in Detail

From flexible thin-film heaters for curved surfaces to rapid-heating elements for 3D printer beds and injection molds — every film is laminated, inspected, and sealed for ±2°C uniform heating.

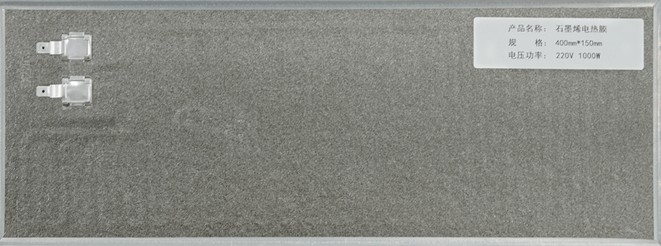

Metal Foil Electric heating film close-up - metal foil heating element laminated with high-temperature mica paper

◆ Upload: /images/electric-heating-film-2.jpg

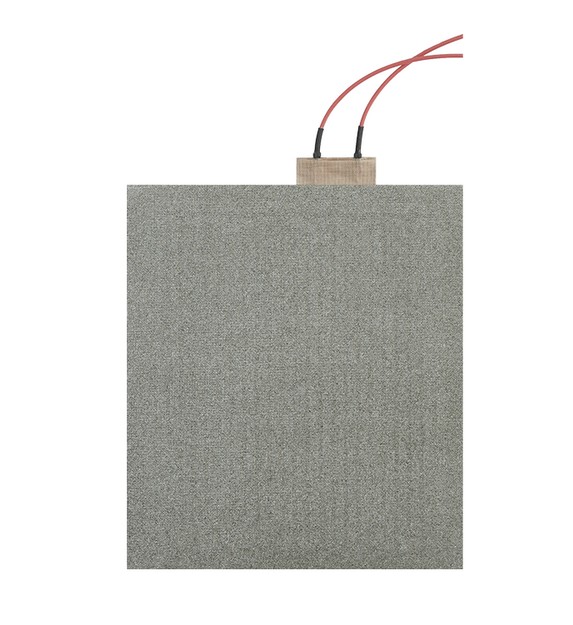

Flexible Design Flexible bendable heating film conforming to curved surface without cracking - pipes, molds, appliance interiors

◆ Upload: /images/electric-heating-film-3.jpg

3D Printer Bed Electric heating film installed on 3D printer heating bed - uniform temperature distribution ±2°C

◆ Upload: /images/electric-heating-film-4.jpg

Rice Cooker App Heating film integrated into rice cooker base - fast uniform heating for household appliances

◆ Upload: /images/electric-heating-film-5.jpg

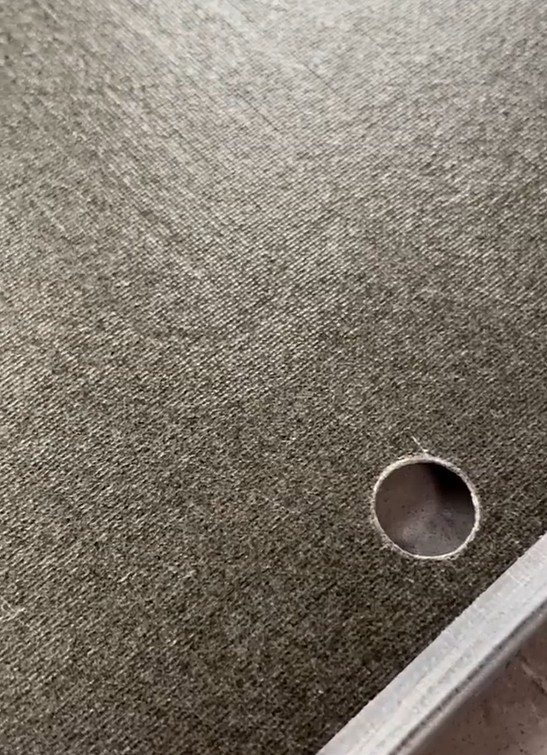

Custom Sizes Electric heating films in various custom sizes - 100x100mm to 1000x500mm for different applications

◆ Upload: /images/electric-heating-film-6.jpg

Car Seat

Heating film embedded in automotive seat cushion - targeted heating for passenger comfort in cold climates

◆ Upload: /images/electric-heating-film-7.jpg

◆ Rapid Heating Demonstration Video · Upload /images/electric-heating-film-demo.mp4

Key Features

Six Properties That Define Our Electric Heating Film

Every property below is verified per batch in our in-house QC laboratory — from temperature uniformity testing to dielectric breakdown and life-cycle validation.

◆ 01

3-Second Rapid Heating

Low thermal inertia enables heating to set temperature in 30-60 seconds (3-second surface rapid heating response). Precise temperature control compatible with thermostats at ±1°C accuracy, dramatically reducing energy waste.

◆ 02

Uniform Heat Distribution

Mica's high thermal conductivity ensures uniform heat spread across the film with ±2°C temperature variation — eliminates hot spots that damage materials or reduce efficiency. Critical for 3D printer beds and injection molds.

◆ 03

Flexible Bendable Design

Thin and easy to bend — conforms to curved surfaces (pipes, molds, appliance interiors) without cracking. Expands installation possibilities in space-constrained applications where rigid heaters cannot fit.

◆ 04

High-Temperature Performance

Withstands continuous operation 200°C-600°C (muscovite for lower range, phlogopite for higher range) — suitable for low-temperature household appliances and industrial curing processes.

◆ 05

Electrical Safety

Mica's dielectric strength of 15-30 kV/mm provides reliable insulation — prevents short circuits even when in contact with metal surfaces. Insulation resistance ≥100 MΩ, leakage current tested at 1800V impact.

◆ 06

Durable IP44 Construction

Resistant to thermal shock, vibration, and moisture — sealed versions rated IP44. Service life exceeds 100,000 hours with no power attenuation. Ensures long service life even in harsh environments.

Specifications

Four Dimensions to Customize — Matched to Your Application

Every heating film can be customized across four core parameters. Tell us your target surface temperature, size, power, and voltage — we tailor the film specifications to your application.

0.3–2.0 mm

Film Thickness

Total film thickness (mica layer + heating element) customizable from 0.3mm ultra-thin for flat integration into thin-wall appliances, up to 2.0mm for rugged industrial mold applications requiring mechanical durability.

0.3–0.6mm: thin-wall appliances
0.6–1.2mm: standard consumer products
1.2–2.0mm: industrial mold bases

100×100 – 1000×500 mm

Dimensions

Standard sizes from 100×100 mm for compact household appliances up to 1000×500 mm for 3D printer beds and large mold platens. Custom cutting to your exact specification — any shape, any size.

100×100–200×200: compact devices
200×300–500×500: medium appliances
500×500–1000×500: industrial platens

5W–3000W

Power Range

Rated power from 5W for low-power medical instruments up to 3000W for industrial mold heating. Power density adjustable from 10 W/cm² (gentle heating) to 50 W/cm² (rapid high-temperature heating) based on application.

5–50W: medical, low-power
50–500W: household appliances
500–3000W: industrial molds

AC 5V–380V

Voltage Options

Compatible with 110V, 220V, and 380V systems as standard. Custom voltage options (AC 5V-380V or DC) available for specialty industrial and automotive applications. Dual-voltage models available for international consumer products.

AC 12V/24V: automotive, low-V
AC 110V/220V: consumer
AC 380V: industrial 3-phase

Technical Specifications

Complete Electric Heating Film TDS

Full technical parameters of our electric heating film. Compliant with GB4706.1-2005 and GB4706.23-2007 national standards, plus RoHS and REACH environmental requirements.

Electric Heating Film Technical Data

◆ GB4706 Certified · RoHS & REACH · Rev. 2025

◆ Certified

Parameter	Specification Details
Surface Temperature	50 °C – 330 °C (operating range)
Mica Material	Muscovite (White): 200 – 400 °C applications Phlogopite (Gold): 400 – 600 °C applications
Heating Element	NiCr alloy foil (high temperature applications) Copper-nickel alloy foil (low temperature, cost-effective)
Power Range	5 W – 3000 W (customizable)
Power Density	10 – 50 W/cm² (adjustable per heating needs)
Voltage	AC 5V – 380V (110V, 220V, 380V standard; custom available)
Dielectric Withstand	1800V impact, no breakdown, no flashover
Insulation Resistance	≥ 100 MΩ
Temperature Uniformity	±2 °C variation across film surface
Temperature Control	Thermostat compatible, ±1 °C precision
Heat-Up Time	< 3 minutes to set temperature (3-second rapid surface response)
Service Life	> 100,000 hours (no power attenuation)
IP Rating	IP44 (sealed version) — resistant to dust and water splashes
Certifications	GB4706.1-2005 / GB4706.23-2007 · RoHS · REACH compliant

Core Applications

Five Industries That Specify Our Electric Heating Film

From household rice cookers to aerospace satellite sensors — wherever flexible, rapid, uniform heating with safety and precision is required.

Household Appliances

Integrated into rice cookers, microwaves, electronic sanitizing cabinets, hair dryers, electric irons, coffee makers, and food warmers — delivering gentle, uniform heat for daily use. Compliant with GB4706 safety standards and CE/RoHS certifications for global consumer markets.

Industrial Molds & 3D Printing

Applied to injection molds, 3D printer beds, laminating machines, copiers, printers, and curing platforms — ensuring consistent temperature across plastics and composite materials. ±2°C uniformity critical for dimensional accuracy in precision parts manufacturing.

Medical Devices

Used in heating massage tools, blood warmers, incubators, and lab culture equipment — where precise, low-noise heating is essential. Thermostat-compatible ±1°C accuracy and IP44 sealed construction ensures hygienic and reliable medical operation.

Automotive Interiors

Embedded in armrests, steering wheels, and seat cushions — providing targeted comfort for passengers in cold climates. Flexible design conforms to complex curved interior surfaces. AC 12V/24V low-voltage versions for 12V vehicle systems.

Aerospace & Electronics

Heating sensitive components in aircraft and satellites (sensors, batteries, optical instruments) — preventing condensation and ensuring reliable performance in low-temperature environments. Ultra-thin 0.3mm option for weight-critical aerospace applications.
