◆ 1000°C · Ultra-Pure

Synthetic mica tape roll - ultra-pure fluorophlogopite high-voltage electrical insulation tape for EV motors and aerospace

◆ Image 1 · Upload as /images/synthetic-mica-tape.jpg

◆ Mica Tape Series

Synthetic Mica Tape — 1000°C Ultra-Pure High-Voltage Insulation

Synthetic mica tape for extreme high-temperature and high-voltage applications. 99%+ pure lab-grown fluorophlogopite — free from natural impurities like iron oxide and quartz. Rated up to 110 kV systems. Factory-direct for EV motors, aerospace, MRI machines, and particle accelerators.

950–1000°C

Continuous Temp

25–40kV/mm

Dielectric Strength

Up to 110kV

HV System Rating

Request TDS & Quote → 💬 WhatsApp Inquiry

Product Overview

What Is Synthetic Mica Tape?

Synthetic mica tape is the premium choice for the most demanding high-temperature and high-voltage insulation applications. Unlike natural mica mined from the earth, our base mica is grown in a laboratory through a controlled fluorophlogopite synthesis process — yielding a material that is 99%+ pure and completely free from natural impurities such as iron oxide and quartz.

This ultra-pure composition dramatically reduces the risk of electrical breakdown in sensitive equipment operating at high voltages. It's why synthetic mica tape is specified in the most critical applications — EV traction motors, aerospace engine bays, MRI scanners, and nuclear reactor power systems.

Our synthetic mica tape is available in two engineered series: Z-series with glass cloth reinforcement for maximum mechanical strength, and N-series without reinforcement for smooth high-voltage dielectric applications. Every batch is manufactured to identical specifications — eliminating the batch-to-batch variability inherent to natural mica.

◆ 99%+ Pure

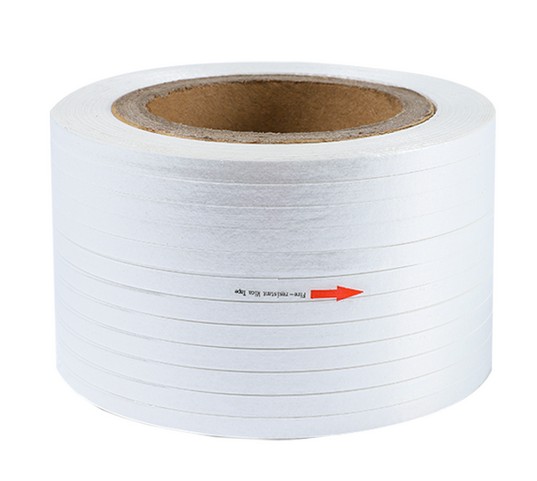

Synthetic mica tape close-up showing ultra-pure fluorophlogopite crystal structure and glass cloth reinforcement

◆ Image 2 · /images/synthetic-mica-tape-2.jpg

Product Features

Seven Properties That Define Synthetic Mica Tape

Ultra-pure synthetic production eliminates every variable that limits natural mica. Every property below is verified per batch in our QC laboratory.

◆ 01

Outstanding Electrical Insulation

Dielectric strength of 25-40 kV/mm, suitable for high-voltage systems up to 110 kV — reliable protection against arc formation and short circuits.

◆ 02

Extreme Temperature Resistance

Withstands continuous service temperatures up to 1000°C — maintaining stability in aerospace engine bays or nuclear reactor environments.

◆ 03

Ultra-Pure Composition

Free from natural impurities such as iron oxide and quartz — reducing the risk of electrical breakdown in sensitive high-voltage equipment.

◆ 04

Excellent Flame Retardancy

Classified as self-extinguishing (UL94 V-0 grade) — delays flame propagation and enhances safety in enclosed electrical systems.

◆ 05

Mechanical Durability

Reinforcement layer delivers high tensile strength (≥40 N/cm in Z-series) — resistant to tearing during installation and vibration in moving parts.

◆ 06

Chemical & Moisture Resistance

Unaffected by most acids, alkalis, oils, and moisture (≤0.5% moisture absorption) — long-term stable in harsh industrial or outdoor environments.

◆ 07

Consistent Quality

Synthetic production eliminates natural mica's variability — guaranteeing consistent thickness, insulation, and heat resistance across every batch.

◆ 08

Customizable Formats

Glass cloth for high mechanical strength, or polyester film for enhanced flexibility in bending applications — paired to your use case.

Product Specifications

Dimensional Specifications

Available thickness, width, length and reinforcement options. Custom dimensions available on request for precision components.

◆ Dimensional Range

Standard & Custom Specifications

◆ 01

Thickness

0.08–0.30mm

Customizable to fit narrow insulation gaps in precision components like motor coils or HV cables.

◆ 02

Width

10–500mm

Slitting options for precise winding around fine wires or complex geometries.

◆ 03

Length per Roll

50–1000m

Standard length 50-1000 m. Bulk packaging available up to 30,000 m for large-scale production.

◆ 04

Reinforcement

Glass / PET

Glass cloth for high mechanical strength, or polyester film for enhanced flexibility in bending applications.

Technical Data

Z-Series & N-Series Technical Specifications

Two engineered series to match your application requirements. Z-series is reinforced with glass cloth for high-strength winding; N-series is designed for smooth dielectric applications. All parameters verified per production batch.

Z-Series · Glass Cloth Reinforced

◆ For High-Strength Winding Applications

◆ 5 Types Z8 → Z16

Parameter	Z8	Z10	Z12	Z14	Z16
Thickness (mm)	0.10±0.015	0.11±0.015	0.125±0.015	0.14±0.015	0.14±0.015
Tape Weight (g/m²)	125±10	148±12	173±12	193±12	215±12
Mica Content (g/m²)	80±3	100±3	120±5	140±5	160±5
Glass Fiber Content (g/m²)	32±3	32±3	32±3	32±3	32±3
Binder Content (g/m²)	13±4	16±4	20±4	21±4	23±4
Breakdown Strength (kV/layer)	>1.0	>1.2	>1.4	>1.5	>1.5
Tensile Strength (N/cm)	>120	>120	>120	>120	>120

N-Series · High-Mica Content Premium

◆ For Maximum Dielectric Performance

◆ 3 Types N12 → N16

Parameter	N12	N14	N16
Thickness (mm)	0.14±0.015	0.15±0.015	0.17±0.015
Tape Weight (g/m²)	182±13	202±13	225±13
Mica Content (g/m²)	120±5	140±5	160±5
Glass Fiber Content (g/m²)	42±4	42±4	42±4
Binder Content (g/m²)	20±4	20±4	23±4
Breakdown Strength (kV/layer)	>1.4	>1.6	>2.0
Tensile Strength (N/cm)	>120	>120	>120

Applications

Where Synthetic Mica Tape Delivers Critical Insulation

When the application is mission-critical and the voltage or temperature is at the edge of what natural mica can handle, synthetic mica is what engineers specify.

Advanced Electrical Equipment

Integrated into high-performance motors, transformers, and inverters in electric vehicles (EVs) and renewable energy systems — ensuring reliable operation under heavy electrical loads.

High-Temperature Industrial Furnaces

Used in furnace wiring harnesses and thermal management systems — protecting electrical components from extreme heat exposure in metallurgy, glass, and ceramic industries.

Medical & Scientific Equipment

Used in MRI machines, particle accelerators, and high-voltage laboratory equipment — where precise insulation is critical for safety and measurement accuracy.
